NEW CONSTRUCTION OF NATURAL GAS STORAGE FACILITY

Project Description

Planning, construction & commissioning of the above-ground brine and gas operating facilities

• soltechnische Betriebsanlagen für die Herstellung der Speicherkavernen mit Pumpstationen, Wassereinlaufbauwerk, Soleaufbereitungs & Transportsysteme, Blanketanlage, Versorgungsanlagen
• Gas technology facilities for the operation of the natural gas cavern storage facility


Technical data Save:

• Max. delivery capacity (total) 300,000 Nm³/h

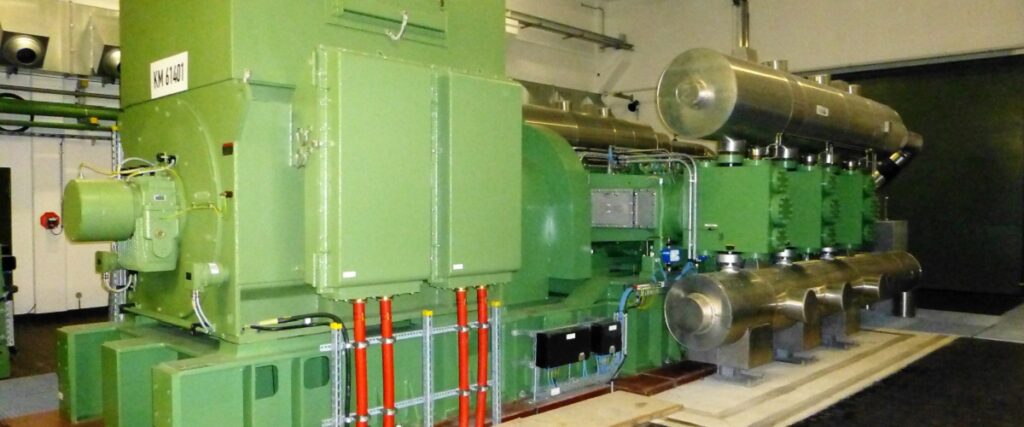

• Number of compressor units (pistons): 3
• 50 to 170 barg Operating pressure
• Electrical connected load per unit: 4.5 MW


Technical data Storage:

• Max. delivery rate (total) 500,000 Nm ³/h
• nom. Withdrawal capacity also with recompression
• Preheating Heat requirement approx. 10.5 MW
• TEG gas drying system


General facilities (excerpt):

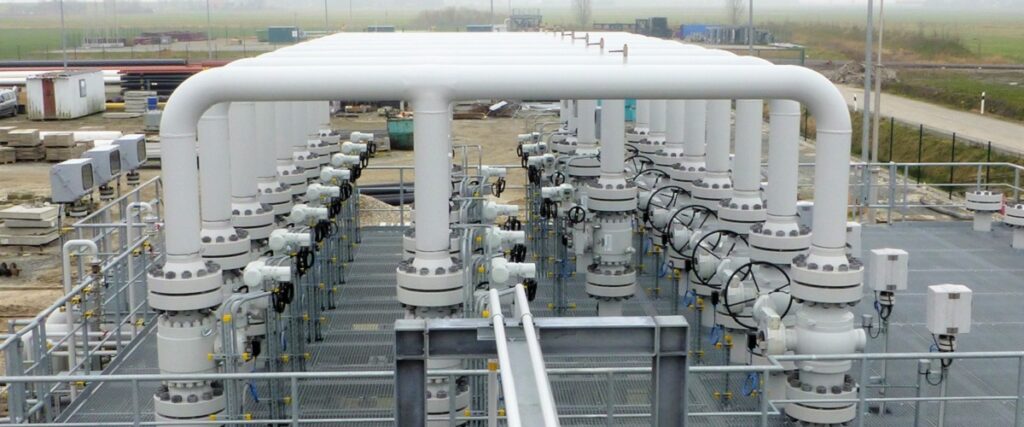

• Number of caverns (connected): 8
• Number of transport systems (connected): 3
• Operating pressure transport systems: 50 .... 90 bar

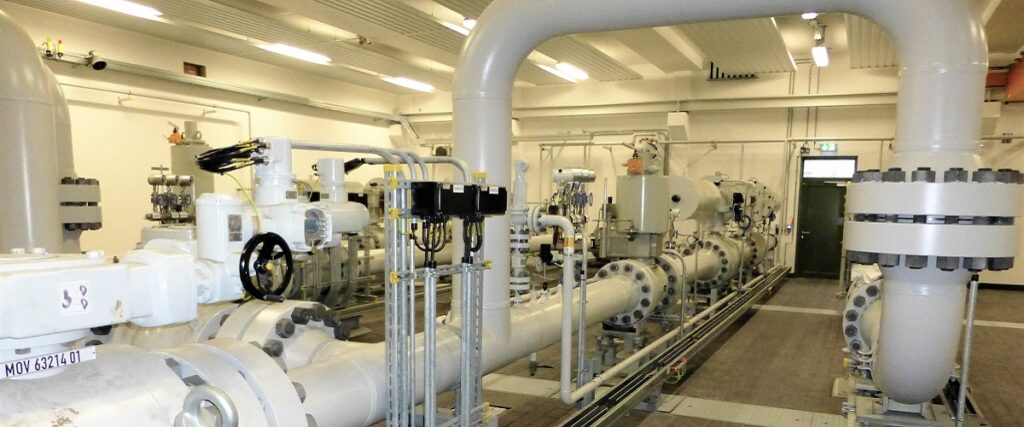

• Gas quantity / gas quality measurements and pressure / quantity controls
• Filter and separator units, condensate systems
• Own gas supply system for internal consumption
• Air supply systems
• Local cathodic corrosion protection system

Scope of supply

Concept and feasibility study, design, approval and implementation planning, preparation and participation in contract award, commercial processing, SHE coordination / support, construction supervision, commissioning / trial operation, documentation, operating manual
